IFM (M30711 Master) Power and Ground Diagnostics

This article provides a specialized diagnostic procedure for verifying the foundational power and ground supplies to the M30711 Master Interface Module (IFM). Ensuring stable power and ground is the first step before troubleshooting specific input/output faults or communication errors.

Tools Required

  • Digital Multimeter (DMM)

  • Thin back-probes or T-pins

  • Basic hand tools (to access dash panels)

Component Locations

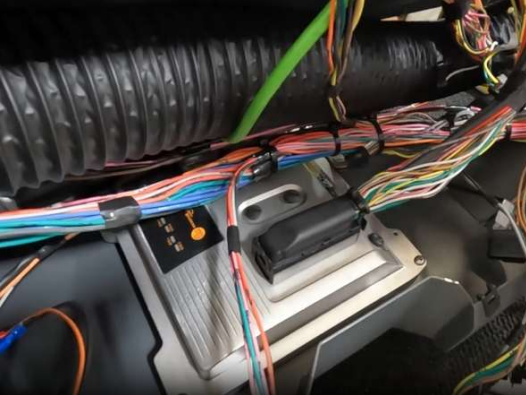

  • Interface Module (IFM): Bolted to the main dash structure behind the left-hand (LH) dash panel.

  • Main Fuse Panel (LET2 Chassis): Located behind the right-hand (RH) lower dash panel, adjacent to the HVAC box.

  • Main Fuse Panel (LNT Chassis): Located behind the right-hand (RH) dash panel.

Vehicle Preparation

  1. Safety: Park on a level surface and chock the wheels.

  2. Access: Remove the necessary dash panels to expose the IFM and the fuse panel.

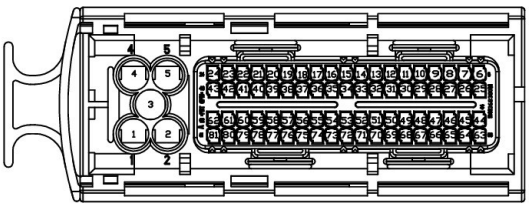

  3. Live Probing Technique: To test the module under load, carefully remove the "clam shell" cover from the back of the main IFM connector. Use back-probes to access the terminals while the connector remains plugged into the module.

Procedure

Part 1: Power Supply Checks

Using a DMM, verify +12V DC at the following pins. Refer to the table below for specific circuit sources and fuse locations.

Pin Function Circuit Source & Verification Details
30 12V Battery R-05 Fuse F26 (20A Breaker, "Horn/IFM PWR").
15 12V Ignition DKG-Y Key ON. Fuse F40 (5A, "ENG ECM"). Note: Fuses F39/F40 must be offset toward the relays for proper contact.
4 12V Battery R-03 Fuse F24 (15A Breaker, "IFM PWR").
3 12V Battery R-05 Spliced with Pin 30 inside the dash harness.
1 12V Battery R-04 Fuse F25 (20A Breaker, "IFM PWR").

Part 2: Ground Supply Checks

Using a DMM, check for continuity to a known-good chassis ground. Resistance should be less than 5 Ohms.

Pin Function Circuit Verification Details
2 Ground BK Confirm low resistance to chassis ground.
5 Ground BK Confirm low resistance to chassis ground.
29 Ground BK Confirm low resistance to chassis ground.

Diagnosis and Repair Summary

  • Missing Power at Pin 15 (Ignition): Inspect Fuse F40. Ensure the fuse is physically "offset" toward the relays; improper seating in the fuse holder is a common cause of intermittent ignition signals.

  • Missing Battery Power (Pins 1, 4, 3, or 30): Check the corresponding breakers (F24, F25, F26). If a breaker is tripped, investigate the harness for a short to ground.

  • High Resistance on Grounds: Inspect the ground bus bar or chassis ground studs for corrosion or loose hardware. Clean the contact surfaces and re-torque.
