Brake Status Signal Fault & "Stuck in Neutral" Diagnosis

To resolve a specific fault condition in 2024–2025 chassis where the transmission becomes stuck in neutral with a flashing "N" on the shift pad. This procedure identifies and corrects a wiring error involving twin 50-inch brake status harnesses.

Tools Required

  • Cummins INSITE diagnostic software with compatible data link adapter

  • Digital Multimeter (DMM)

  • Basic hand tools (socket set, wrenches)

  • Side cutters and new zip ties

  • Wheel chocks

Vehicle Preparation

  1. Safety: Park on a level surface, chock the wheels, and ensure air system pressure is at or above 100 PSI.

  2. Electrical: Be prepared to disconnect batteries if harness repairs are required; however, initial diagnostics require the ignition to be ON.

  3. System Context: Affected models may allow limited shifts after a key cycle before the TCM logs a hard fault due to a missing Brake Status signal at the ECM.

Procedure

Part 1: Software Verification (Cummins INSITE)

  1. Connect to the vehicle using Cummins INSITE.

  2. Open Data Monitor/Logger and select the "Brake Status" parameter.

  3. Observe the parameter while firmly depressing and releasing the service brake pedal.

    • Status Changes: The circuit is functional. Refer to the transmission manufacturer’s diagnostic tree for internal faults.

    • Status Does NOT Change: The ECM is not receiving the signal. Proceed to physical inspection.

Part 2: Physical Inspection & Manifold Verification

  1. Locate the Manifold: Find the air manifold on the right-hand side of the cross member (located below the engine crank pulley) identified by red air lines.

  2. Verify Switch: Confirm "Brake Status SW" (Part 308B-0030) is installed. If the port is plugged or empty, install the switch.

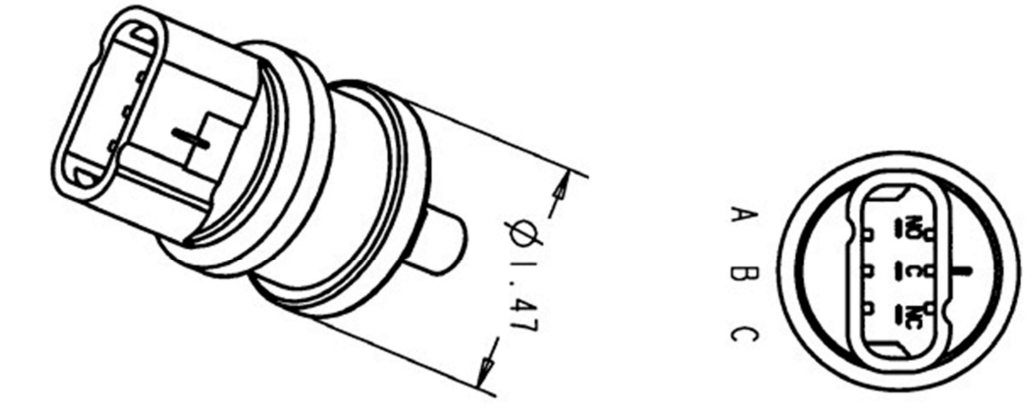

  3. Pinout Check: Verify the Packard 3-pin connector contains two yellow wires:

    • Wire 040 (ECM Ground Return): Must be in Pin B.

    • Wire 023 (Signal to ECM): Must be in Pin C.

  4. IMPORTANT: Do not disturb the "NIS Brake Switch" (identifiable by blue and black wires). This is a separate safety interlock and is not part of this diagnostic.

Part 3: Identifying the Active Harness Leg

Most 2024/2025 units were built with two physically identical 50-inch yellow-wire harnesses. Often, the inactive leg is connected by mistake.

  1. Trace the currently connected yellow-wire harness back 50 inches to its breakout point from the main chassis harness.

  2. Locate the second, identical 50-inch harness leg at this same breakout point. It is likely zip-tied back and hidden.

  3. Swap the Connection: Disconnect the incorrect leg and plug the active (previously tied back) leg into the Brake Status Switch.

  4. Retest: Return to INSITE and verify the "Brake Status" parameter now toggles when the pedal is pressed.

Final Verification and Wrap-Up

  1. Secure Wiring: Neatly zip-tie the inactive harness leg back to the main loom to prevent future confusion or mechanical chafing.

  2. Operational Test: Conduct a test drive. Verify the transmission shifts out of neutral consistently and ensure Cruise Control and Engine Brake functions (which rely on this signal) are operational.

  3. Clear Codes: Perform a final scan and clear any inactive TCM or ECM faults.
